# ECE 4750 Section 9: Lab 4 Head Start
Table of Contents
- TinyRV2 Single-Core Processor Walk-Through
- Natively Compiling a C Test Programs
- Cross-Compiling Compiling a C Test Programs
- Compiling and Cross-Compiling a C Microbenchmark
- Evaluating a C Microbenchmark
- An Accumulate C Microbenchmark
This discussion section serves to introduce students to the
process we will be using to compile, cross-compile, test, and
evaluate C programs running on the single- and multi-core
processors we will be building in Lab 4. You should log into the
ecelinux servers using the remote access option of
your choice and then source the setup script.
% source setup-ece4750.sh
% cd $HOME/ece4750/2025F
% git pull
% cd sections/section9
% TOPDIR=$PWD
% mkdir $TOPDIR/buildTinyRV2 Single-Core Processor Walk-Through

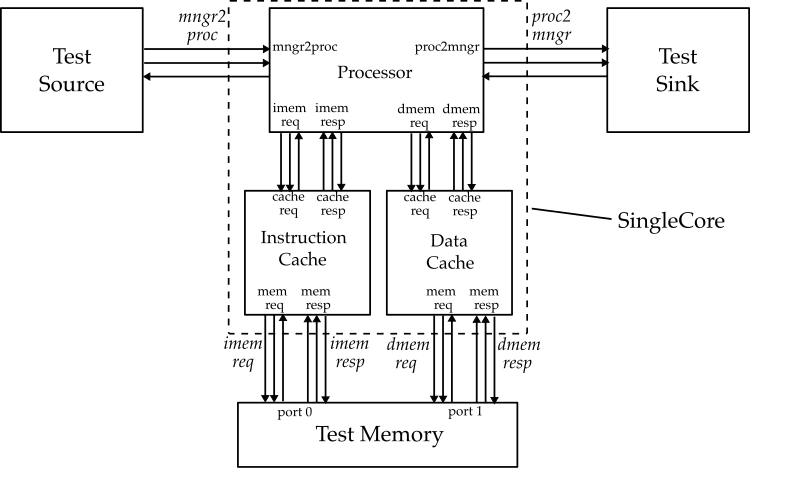

The following figure shows the high-level interface for our TinyRV2 single-core system. We compose the pipelined processor implemented in Lab 2 (which includes the multiplier from Lab 1) with two instances of the cache implemented in Lab 3 to serve as the instruction cache and data cache. There are also mngr2proc and proc2mngr stream interfaces for testing purposes. All interfaces are implemented using the latency-insensitive val/rdy micro-protocol.
Natively Compiling a C Test Program
In Lab 2, you used hand-coded assembly programs to evaluate your pipelined processor. Obviously this is quite tedious and error prone. In Lab 4, you will be writing C programs and cross-compiling them to run on your single-core and multi-core systems.
IMPORTANT: It is absolutely critical that you thoroughly test all of your C programs by natively compiling and executing them before even thinking of executing these programs on your single-core or multi-core system!
When we say “natively compiling and executing” what we mean is
that you have tested your program by compiling it on
ecelinux for x86 and then executed this program on
the ecelinux server (i.e., just like any regular C
program). Why is this so important? Because trying to debug an
error in your C program when executing the C program on a
simulator is very painful. It is much easier (and
faster!) to debug your C program using native execution.
Let’s try compiling a C program from the command line. First
enter the following simple C program into a file named
hello.c:
#include <stdio.h>
int main( void )
{
printf("hello world!");
}Then you can compile and execute this program like this:
% gcc -o hello hello.c
% ./helloWe are using gcc as the native compiler. Manually
compiling programs from the command line like this is tedious and
error prone. We can automate this process using a build
system. More specifically, we will be using a Makefile to
automate the process of compiling, cross-compiling, linking, and
executing C programs. The build system and all of the C source
code for Lab 4 will be in the app subdirectory; let’s
take a look at this subdirectory:
% cd $TOPDIR/app
% tree
.
├── aclocal.m4
├── config.h.in
├── configure
├── configure.ac
├── ece4750
│ ├── crt0.S
│ ├── ece4750.ac
│ ├── ece4750-check.c
│ ├── ece4750-check.h
│ ├── ece4750-check-test.c
│ ├── ece4750.h
│ ├── ece4750-malloc.c
│ ├── ece4750-malloc.h
│ ├── ece4750-malloc-test.c
│ ├── ece4750-misc.c
│ ├── ece4750-misc.h
│ ├── ece4750.mk.in
│ ├── ece4750-wprint.c
│ ├── ece4750-wprint-ex.c
│ └── ece4750-wprint.h
├── Makefile.in
├── scripts
│ ├── config.guess
│ ├── config.sub
│ ├── gen-unsorted-list.py
│ ├── install.sh
│ ├── mk-install-dirs.sh
│ ├── tinyrv2.ld
│ └── vcs-version.sh
├── simple
│ ├── simple.ac
│ ├── simple-avg-adhoc.c
│ ├── simple-avg.c
│ ├── simple-avg.h
│ ├── simple-avg-test.c
│ └── simple.mk.in
└── ubmark
├── ubmark.ac
├── ubmark.mk.in
├── ubmark-vvadd.c
├── ubmark-vvadd.dat
├── ubmark-vvadd-eval.c
├── ubmark-vvadd.h
└── ubmark-vvadd-test.cIn this discussion section, we will be starting with the code
in app/simple and also take a quick look at the code
in app/ubmark. We provide a very simple ece4750
standard C library in app/ece4750 which enables
printing, dynamic memory allocation, pseudo random number
generation, exiting the program, and unit testing. Remember that
our systems do not run an operating system. You cannot use the
“real” standard C library, read/write files, process complex
command line arguments, etc. We can only write simple “bare-metal”
C programs.
Let’s take a look at the simple C program in
app/simple/simple-avg-adhoc.c with a function that
averages two integers:
#include "ece4750.h"
__attribute__ ((noinline))
int avg( int x, int y )
{
int sum = x + y;
return sum / 2;
}
int main( void )
{
int a = 10;
int b = 20;
int c = avg( a, b );
ece4750_wprintf( L"average of %d and %d is %d\n", a, b, c );
return 0;
}First, notice how we include the ece4750.h header
which gives us access to the very simple ece4750 standard C
library. We are using a noinline attribute to prevent
the C compiler from inlining this function; this makes it easier
for us to see the assembly corresponding to this function. Notice
how we are using ece4750_wprintf instead of
printf. This is because printf uses
regular ASCII character strings which are stored as arrays of
bytes. If we try to read/write a regular ASCII character string
this will result in byte load/stores but TinyRV2 only supports 4B
word load/stores! So we will instead always use “wide characters”
which is stored as a 4B word. You will need to use the
L prefix in front of all string literals. You can
always look in the ece4750 standard library to learn more about
how these functions are implemented.
Let’s use the build system to compile this simple C program. We always start by creating a build directory, just like we do when testing and evaluating our RTL models. We want to keep generated files separate from source files.
% mkdir -p $TOPDIR/app/build-native
% cd $TOPDIR/app/build-native
% ../configureWe name the build directory build-native to
clearly indicate that this is where we will be doing native
compilation. The configure script uses the
app/Makefile.in template to create a specialized
Makefile for this build. Now we can go ahead and
compile the simple C program.
% cd $TOPDIR/app/build-native
% make simple-avg-adhoc
% objdump -dC ./simple-avg-adhocYou can see from objdump that this is an x86
binary (not a TinyRV2 binary!). Now let’s execute the program.
% cd $TOPDIR/app/build-native
% ./simple-avg-adhocHopefully no surprises. This simple C program is an example of “ad-hoc testing”. We write a program, try some inputs, and print the outputs. We can manually verify that the outputs are correct. We argued previously in the semester that ad-hoc testing is insufficient for hardware, and all those same reasons apply to software. We must use a systematic and automatic unit testing strategy to verify that our software is correct. We provide you a simple unit testing framework to make this relatively easy.
First, you will need to keep the function under test in a
separate file. This way we can use modular compilation to compile
the function and link it against our test program and then later
link it against an evaluation program for final performance
analysis. Take a look at the app/simple/simple-avg.h
and app/simple/simple-avg.c files; the header file
contains the function declaration (i.e., the interface for the
function) and the C source file contains the function definition
(i.e., the implementation for the function). Now let’s look at the
test program in app/simple/simple-avg-test.c:
#include "ece4750.h"
#include "simple-avg.h"
void test_case_1_pos_pos_even()
{
ECE4750_CHECK( L"test_case_1_pos_pos_even" );
ECE4750_CHECK_INT_EQ( avg( 4, 8 ), 6 );
ECE4750_CHECK_INT_EQ( avg( 100, 200 ), 150 );
ECE4750_CHECK_INT_EQ( avg( 37, 53 ), 45 );
}
...
int main( int argc, char** argv )
{
__n = ( argc == 1 ) ? 0 : ece4750_atoi( argv[1] );
if ( (__n <= 0) || (__n == 1) ) test_case_1_pos_pos_even();
if ( (__n <= 0) || (__n == 2) ) test_case_2_pos_pos_odd();
if ( (__n <= 0) || (__n == 3) ) test_case_3_neg_neg_even();
if ( (__n <= 0) || (__n == 4) ) test_case_4_neg_neg_odd();
if ( (__n <= 0) || (__n == 5) ) test_case_5_pos_neg_even();
if ( (__n <= 0) || (__n == 6) ) test_case_6_pos_neg_odd();
ece4750_wprintf( L"\n\n" );
return ece4750_check_status;
}Each test case is a separate function. You should use the
ECE4750_CHECK macro with a string which indicates the
name of this test case. Then you can use additional
ECE4750_CHECK macros to check various properties of
your C program.
ECE4750_CHECK_FAIL: force a test case failureECE4750_CHECK_TRUE: check if an expression is trueECE4750_CHECK_FALSE: check if an expression is falseECE4750_CHECK_INT_EQ: check if two expressions are equal
You need to make sure to modify the main function
to call each test case using the pattern shown above. Let’s
compile and run this test program:
% cd $TOPDIR/app/build-native
% make simple-avg-test
% ./simple-avg-test -1
% ./simple-avg-test
% ./simple-avg-test 1The test program takes a single integer command line argument.
-1 means to print the name of each test case but not
to actually run the test cases. With no command line argument, the
test program will run all of the tests. You can also specify a
single test case number to run on the command line. A little green
dot indicates that one of the ECE4750_CHECK macros
passed. It is very convenient to build and run a unit test with a
single command like this:
% cd $TOPDIR/app/build-native
% make simple-avg-test && ./simple-avg-testThis way you can rerun the test by just pressing the up arrow key and enter. You can run all of the test cases associated with a specific subproject like this:
% cd $TOPDIR/app/build-native
% make check-simpleAnd you can run all of the test cases across all subprojects like this:
% cd $TOPDIR/app/build-native
% make checkCross-Compiling Compiling a C Test Program
Now that we know our simple C program works natively, we can
try cross-compiling it and executing it on our simulators. Let’s
go back to our hello.c program:
#include <stdio.h>
int main( void )
{
printf("hello world!");
}We can cross-compile this program like this:
% riscv32-unknown-elf-gcc -o hello hello.c
% ./helloInstead of using gcc, which is the native
compiler, we are using riscv32-unknown-elf-gcc which
is the cross-compiler for RISC-V. Note that this a general
cross-compiler that supports the full RISC-V instruction set. You
can definitely compile complex programs that will not work on a
TinyRV2 simulator. For example, the above program will not work on
a TinyRV2 simulator because it uses printf and ASCII
character strings which are not supported.
Let’s move to doing cross-compilation using the build system.
Cross-compilation needs its own build directory separate from the
build directory we use for native compilation. We also need to
give the configure script a special command line
option.
% mkdir -p $TOPDIR/app/build
% cd $TOPDIR/app/build
% ../configure --host=riscv64-linux-gnu LDFLAGS="-nostdlib -nodefaultlibs -nostartfiles"Now let’s cross-compile simple-avg-adhoc. The
Makefile takes care of using
riscv32-unknown-elf-gcc.
% cd $TOPDIR/app/build
% make simple-avg-adhoc
% riscv32-objdump ./simple-avg-adhoc | less -p "<avg>:"
...
00000254 <avg>:
254: add x10, x10, x11
258: srli x15, x10, 0x1f
25c: add x5, x15, x10
260: srai x10, x5, 0x1
264: jalr x0, x1, 0You can see it has compiled the avg function into
five RISC-V instructions. The division is implemented using a SRAI
instruction. The SRLI instruction and second ADD instruction make
sure that integer division rounds towards zero when averaging
negative numbers. The are two more key parts of the
cross-compilation process.
First, the linker script is used to specify how different parts of the program are placed into the virtual address space. We usually use the default linker script, but for TinyRV2 we need to be very careful where we put the code to make sure it starts at the reset vector (i.e., address 0x200). If you are interested, you can see the TinyRV2 linker script here:
% cd $TOPDIR/app/scripts
% cat tinyrv2.ldSecond, the crt0.S assembly file is used to
specify the assembly instructions which should be executed when
starting the program. We don’t start the program by executing
main. We start by doing some setup code, and then
that setup code will call main. We usually use the
default crt0.S, but for TinyRV2 we need our own
custom crt0.S. If you are interested, you can see the
TinyRV2 crt0.S assembly file here:
% cd $TOPDIR/app/ece4750
% cat crt0.SNow we are ready to execute our cross-compiled program on our
simulators. You should always start by executing the program on a
functional-level model of the target system (also called an
instruction set architecture (ISA) simulator). This way we know
the program has been cross-compiled correctly before we try
executing the program on our detailed RTL models. We provide an
ISA simulator for you in Lab 4 in
sim/lab4_sys/sys-sim. So you can run the
cross-compiled program like this:
% cd $TOPDIR/app/build
% ../../sim/lab4_sys/sys-sim ./simple-avg-adhocTo simplify using the system simulator, you can also temporarily add it to your path like this:
% export PATH="$TOPDIR/sim/lab4_sys:$PATH"
% cd $TOPDIR/app/build
% sys-sim ./simple-avg-adhocIf our simulators do not support an operating system, how is
the program able to print to the console? If you look in
app/ece4750/ece4750-wprint.h and
app/ece4750/ece4750-wprint.c you will see that
calling ece4750_wprintf eventually results in sending
messages to the test harness using the proc2mngr CSR.
The system simulator looks for these messages and knows how to
display integers, characters, and strings to the console.
Let’s now cross-compile and run our test program on the TinyRV2 ISA simulator.
% cd $TOPDIR/app/build
% make simple-avg-test
% sys-sim ./simple-avg-test -1
% sys-sim ./simple-avg-test
% sys-sim ./simple-avg-test 1This will run all of our software tests on the TinyRV2 ISA simulator which gives us confidence that our program has been cross-compiled correctly (we already know our program works since we tested in natively!). Notice how you can pass command line arguments to the cross-compiled program running on the ISA simulator. Again, it is very convenient to build and run a unit test with a single command like this:
% cd $TOPDIR/app/build
% make simple-avg-test && ./simple-avg-testYou can run all of the test cases associated with a specific subproject like this:
% cd $TOPDIR/app/build
% make check-simpleAnd you can run all of the test cases across all subprojects like this:
% cd $TOPDIR/app/build
% make checkCompiling and Cross-Compiling a C Microbenchmark
Obviously, we want to explore more interesting programs than an
integer average function. Let’s look at our element-wise
vector-vector addition microbenchmark. All of our single-core
microbenchmarks will be in the app/ubmark directory.
Take a look at the implementation of the benchmark in
app/ubmark/ubmark-vvadd.h and
app/ubmark/ubmark-vvadd.c. Then look at the unit
tests in app/ubmark/ubmark-vvadd-test.c. We have
tests for positive values, negative values, and different sized
input arrays.
Let’s start by testing this microbenchmark natively.
% cd $TOPDIR/app/build-native
% make ubmark-vvadd-test
% ./ubmark-vvadd-testThen we can cross-compile the microbenchmark and take a look at the corresponding assembly.
% cd $TOPDIR/app/build
% make ubmark-vvadd-test
% riscv32-objdump ./ubmark-vvadd-test | less -p "<ubmark_vvadd>:"
...
00000ec0 <ubmark_vvadd>:
ec0: bge x0, x13, eec # -----.
ec4: slli x13, x13, 0x2 # |
ec8: add x13, x11, x13 # |
ecc: lw x15, 0(x11) # <-. |
ed0: lw x14, 0(x12) # | |
ed4: addi x11, x11, 4 # | |
ed8: addi x12, x12, 4 # | |
edc: add x15, x15, x14 # | |
ee0: sw x15, 0(x10) # | |
ee4: addi x10, x10, 4 # | |
ee8: bne x11, x13, ecc # --' |
eec: jalr x0, x1, 0 # <----'We have annoted the assembly to show the control flow. The first BGE instruction branches directly to the function return if the size is less than or equal to zero. The SLLI and ADD create a pointer that points to one past the last element in the array. Then we see the expected loads, add, stores, and pointer bumps. The key difference from the classic loop we study in lecture is that the compiler has elimited the instruction used to decrement the loop counter and is instead simply comparing one of the array pointers to the pre-calculated “one past the last element” pointer.
Now let’s execute this test program on the TinyRV2 ISA simulator:
% cd $TOPDIR/app/build
% sys-sim ./ubmark-vvadd-testEvaluating a C Microbenchmark
Now that we know our microbenchmark passes all of our tests
natively and on the ISA simulator, we are ready to do an actual
evaluation. Take a look at the evaluation program in
app/ubmark/ubmark-vvadd-eval.c:
#include "ece4750.h"
#include "ubmark-vvadd.h"
#include "ubmark-vvadd.dat"
int main( void )
{
// Allocate destination array for results
int* dest = ece4750_malloc( eval_size * (int)sizeof(int) );
// Run the evaluation
ece4750_stats_on();
ubmark_vvadd( dest, eval_src0, eval_src1, eval_size );
ece4750_stats_off();
// Verify the results
for ( int i = 0; i < eval_size; i++ ) {
if ( dest[i] != eval_ref[i] ) {
ece4750_wprintf( L"\n FAILED: dest[%d] != eval_ref[%d] (%d != %d)\n\n",
i, i, dest[i], eval_ref[i] );
ece4750_exit(1);
}
}
ece4750_wprintf( L"\n **PASSED** \n\n" );
// Free destination array
ece4750_free(dest);
return 0;
}A couple of things to note. The dataset is stored in
ubmark-vvadd.dat. We cannot read/write files, so all
datasets will be compiled into the binary using global arrays. The
.dat file also includes the reference output so we
can verify the microbenchmark has produced the correct result. We
are using ece4750_malloc to do dynamic memory
allocation. We are using a very, very simple bump allocator which
just allocates dynamic memory on the heap but never really frees
it. Do not try to allocate too much dynamic memory! Finally,
notice how we call ece4750_stats_on right before the
function we want to evaluate and ece4750_stats_off
right after the function we want to evaluate. These functions
write a CSR which then triggers a signal in the simulator to start
or stop collecting statistics. We call this region the region
of interest (ROI).
As always, we need to make sure our evaluation program works natively before trying to actually execute it on our simulators.
% cd $TOPDIR/app/build-native
% make ubmark-vvadd-eval
% ./ubmark-vvadd-evalOnce we know the microbenchmark works, we can cross-compile it and run it on our ISA simulator.
% cd $TOPDIR/app/build
% make ubmark-vvadd-eval
% sys-sim ./ubmark-vvadd-evalWe can use the --stats command line option to
display statistics.
% cd $TOPDIR/app/build
% sys-sim --stats ./ubmark-vvadd-evalSince this is an ISA simulator the number of cycles is not meaningful, but the number of instructions is useful since it tells you how many instructions are in the ROI.
Of course, the real goal is to run this microbenchmark on our RTL models. You will be creating a single-core system in Lab 4, but just for demonstration purposes, we can show how to do evaluate this microbenchmark on our single-core system. You should start by confirming your test program runs correctly on the RTL model of the single-core system like this:
% cd $TOPDIR/app/build
% sys-sim --impl base ./ubmark-vvadd-testThen you can run the evaluation program on the single-core system. Here is what it looks like on our single-core system.
% cd $TOPDIR/app/build
% sys-sim --impl base --stats ./ubmark-vvadd-eval
num_cycles = 4258
num_inst = 811
CPI = 5.25
num_icache_access = 912
num_icache_miss = 5
icache_miss_rate = 0.01
num_dcache_access = 301
num_dcache_miss = 75
dcache_miss_rate = 0.25There are 811 instructions in the ROI and the CPI is 5.25. The instruction cache miss rate is quite low since there is significant temporal locality in the vector-vector-add loop. The data cache miss rate is 25% which is to be expected. This microbenchmark is streaming through three arrays. The access to the first word on a cache line results in a miss, and then we have four hits when accessing the next four words. There are three arrays each with 100 elements, so the number of data cache accesses is around 300. There is one extra data cache access due to a few extra instructions before/after the key inner loop. We can look at the line trace to learn more about the execution of this microbenchmark.
% cd $TOPDIR/app/build
% sys-sim --impl base --trace ./ubmark-vvadd-eval > trace.txtFor long traces it is often better to save them to a file. You
can search for csrw to jump to where stats are
enabled (i.e. the ROI). It can be a little complicated to analyze
the line trace since the loop has been unrolled and aggressively
optimized. This is what the line trace looks like for an iteration
of the loop where the memory accesses miss in the data cache.
F-stage D-stage X M W icache dcache imem dmem
497: *# | | | | |(I [...])(I [...]) | # icache request
498: *# | | | | |(TC h[...])(I [...]) | # icache hit!
499: *# | | | | |(RD [...])(I [...]) | # icache read data
500: *00000260| | | | |(W [...])(I [...]) | # LW F-stage, icache response
501: *# |lw x15, 0x000(x11) | | | |(I [...])(I [...]) | # LW D-stage
502: *# | |lw | | |(TC h[...])(I [...]) | # LW X-stage, dcache request
503: *# | | |# | |(RD [...])(TC m[...]) | # dcache miss!
504: *# | | |# | |(W [...])(RR [...]) |rd> # dcache refill
505: *# | | |# | |(W [...])(RW [...]) | >rd # dcache refill
506: *# | | |# | |(W [...])(RU [...]) | # dcache refill
507: *# | | |# | |(W [...])(RD [...]) | # dcache read data
508: *00000264| | |lw | |(W [...])(W [...]) | # LW M-stage, dcache response
509: *# |lw x14, 0x000(x12) | | |lw |(I [...])(I [...]) | # LW W-stage
510: *# | |lw | | |(TC h[...])(I [...]) |
511: *# | | |# | |(RD [...])(TC m[...]) |
512: *# | | |# | |(W [...])(RR [...]) |rd>
513: *# | | |# | |(W [...])(RW [...]) | >rd
514: *# | | |# | |(W [...])(RU [...]) |
515: *# | | |# | |(W [...])(RD [...]) |
516: *00000268| | |lw | |(W [...])(W [...]) |
517: *# |addi x11, x11, 0x004 | | |lw |(I [...])(I [...]) |
518: *# | |addi| | |(TC h[...])(I [...]) |
519: *# | | |addi| |(RD [...])(I [...]) |
520: *0000026c| | | |addi|(W [...])(I [...]) |
521: *# |addi x12, x12, 0x004 | | | |(I [...])(I [...]) |
522: *# | |addi| | |(TC h[...])(I [...]) |
523: *# | | |addi| |(RD [...])(I [...]) |
524: *00000270| | | |addi|(W [...])(I [...]) |
525: *# |add x15, x15, x14 | | | |(I [...])(I [...]) |
526: *# | |add | | |(TC h[...])(I [...]) |
527: *# | | |add | |(RD [...])(I [...]) |
528: *00000274| | | |add |(W [...])(I [...]) |
529: *# |sw x15, 0x000(x10) | | | |(I [...])(I [...]) |
530: *# | |sw | | |(TC h[...])(I [...]) |
531: *# | | |# | |(RD [...])(TC m[...]) |
532: *# | | |# | |(W [...])(RR [...]) |rd>
533: *# | | |# | |(W [...])(RW [...]) | >rd
534: *# | | |# | |(W [...])(RU [...]) |
535: *# | | |# | |(W [...])(WR [...]) |
536: *00000278| | |sw | |(W [...])(W [...]) |
537: *# |addi x10, x10, 0x004 | | |sw |(I [...])(I [...]) |
538: *# | |addi| | |(TC h[...])(I [...]) |
539: *# | | |addi| |(RD [...])(I [...]) |
540: *0000027c| | | |addi|(W [...])(I [...]) | #
541: *# |bne x11, x13, 0x1fe4| | | |(I [...])(I [...]) | #
542: *~ | |bne | | |(TC h[...])(I [...]) | # BNE X-stage, branch taken
543: *# | | |bne | |(RD [...])(I [...]) | # wait for in-flight icache req
544: *# | | | |bne |(W [...])(I [...]) | # wait for in-flight icache req
545: *# | | | | |(I [...])(I [...]) | # fetch branch target
546: *# | | | | |(TC h[...])(I [...]) |
547: *# | | | | |(RD [...])(I [...]) |
548: *00000260| | | | |(W [...])(I [...]) |
549: *# |lw x15, 0x000(x11) | | | |(I [...])(I [...]) |
550: *# | |lw | | |(TC h[...])(I [...]) |
551: *# | | |# | |(RD [...])(TC h[...]) |
552: *# | | |# | |(W [...])(RD [...]) |
553: *00000264| | |lw | |(W [...])(W [...]) |
554: *# |lw x14, 0x000(x12) | | |lw |(I [...])(I [...]) |The * right before the F stage means that stats
are enabled (i.e., we are in the ROI). The line trace shows the
five-stage pipeline as well as the cache FSMs. We have edited out
the tag state. You can see that all instruction cache accesses are
hitting in the cache, but you can clearly see the impact of the
four-cycle hit latency! Each instruction cache access must go
through the I->TC->RD->W states. The instruction cache
access for the first LW goes to the cache on cycle 497 and it is
returned on cycle 500. The processor pipeline is finally able to
decode the LW on cycle 501. The four-cycle hit latency means the
absolute lowest CPI will be 4. On cycle 502, the LW is in the X
stage and sends a data memory request to the data cache. You can
see the data cache go through the
I->TC->RR->RW->RU->RD->W states to handle the
miss, and you can see the refill read request go to main memory on
cycle 504 and the refill response coming back on cycle 505.
Finally, the data is returned from memory on cycle 1056. The
second LW and the SW also miss. If we count when the instruction
fetch for the first LW is sent to the icache on cycle 497 to when
the same thing happens for the first LW in the next iteration on
cycle 545, the total number of cycles to execute this iteration of
the loop is 48 for a CPI of 48/8 = 6.
This is what the line trace looks like for the next iteration of the loop when the memory accesses hit in the data cache.
F-stage D-stage X M W icache dcache imem dmem
545: *# | | | | |(I [...])(I [...]) |
546: *# | | | | |(TC h[...])(I [...]) |
547: *# | | | | |(RD [...])(I [...]) |
548: *00000260| | | | |(W [...])(I [...]) |
549: *# |lw x15, 0x000(x11) | | | |(I [...])(I [...]) |
550: *# | |lw | | |(TC h[...])(I [...]) |
551: *# | | |# | |(RD [...])(TC h[...]) |
552: *# | | |# | |(W [...])(RD [...]) |
553: *00000264| | |lw | |(W [...])(W [...]) |
554: *# |lw x14, 0x000(x12) | | |lw |(I [...])(I [...]) |
555: *# | |lw | | |(TC h[...])(I [...]) |
556: *# | | |# | |(RD [...])(TC h[...]) |
557: *# | | |# | |(W [...])(RD [...]) |
558: *00000268| | |lw | |(W [...])(W [...]) |
559: *# |addi x11, x11, 0x004 | | |lw |(I [...])(I [...]) |
560: *# | |addi| | |(TC h[...])(I [...]) |
561: *# | | |addi| |(RD [...])(I [...]) |
562: *0000026c| | | |addi|(W [...])(I [...]) |
563: *# |addi x12, x12, 0x004 | | | |(I [...])(I [...]) |
564: *# | |addi| | |(TC h[...])(I [...]) |
565: *# | | |addi| |(RD [...])(I [...]) |
566: *00000270| | | |addi|(W [...])(I [...]) |
567: *# |add x15, x15, x14 | | | |(I [...])(I [...]) |
568: *# | |add | | |(TC h[...])(I [...]) |
569: *# | | |add | |(RD [...])(I [...]) |
570: *00000274| | | |add |(W [...])(I [...]) |
571: *# |sw x15, 0x000(x10) | | | |(I [...])(I [...]) |
572: *# | |sw | | |(TC h[...])(I [...]) |
573: *# | | |# | |(RD [...])(TC h[...]) |
574: *# | | |# | |(W [...])(WR [...]) |
575: *00000278| | |sw | |(W [...])(W [...]) |
576: *# |addi x10, x10, 0x004 | | |sw |(I [...])(I [...]) |
577: *# | |addi| | |(TC h[...])(I [...]) |
578: *# | | |addi| |(RD [...])(I [...]) |
579: *0000027c| | | |addi|(W [...])(I [...]) |
580: *# |bne x11, x13, 0x1fe4| | | |(I [...])(I [...]) |
581: *~ | |bne | | |(TC h[...])(I [...]) |
582: *# | | |bne | |(RD [...])(I [...]) |
583: *# | | | |bne |(W [...])(I [...]) |
584: *# | | | | |(I [...])(I [...]) |
585: *# | | | | |(TC h[...])(I [...]) |
586: *# | | | | |(RD [...])(I [...]) |
587: *00000260| | | | |(W [...])(I [...]) |
588: *# |lw x15, 0x000(x11) | | | |(I [...])(I [...]) |
589: *# | |lw | | |(TC h[...])(I [...]) |
590: *# | | |# | |(RD [...])(TC h[...]) |
591: *# | | |# | |(W [...])(RD [...]) |
592: *00000264| | |lw | |(W [...])(W [...]) |
593: *# |lw x14, 0x000(x12) | | |lw |(I [...])(I [...]) |Notice that for this sequence, each access to the data cache hits and goes through the I->TC->RD/WR->W states. If we count when the instruction fetch for the first LW is sent to the icache on cycle 545 to when the same thing happens for the first LW in the next iteration on cycle 584, the total number of cycles to execute this iteration of the loop is 39 for a CPI of 39/8 = 4.875.
The arrays in the microbenchmark have a size of 100; 25 of these iterations will miss in the cache and take roughly 48 cycles and 75 of these iterations will hit in the cache and take 39 cycles for a total of 2548+7539 = 4125 cycles. The actual cycle count is 4258 cycles. The difference is because sometimes we need to evict cache lines which increases the miss penalty, and there are some instructions before and after the loop that need to be executed.
An Accumulate C Microbenchmark
Try writing an accumulate microbenchmark in the
ubmark-accumulate.c file. Compile it natively to
verify the tests pass and the evaluation program works like
this:
% cd $TOPDIR/app/build-native
% make ubmark-accumulate-test
% ./ubmark-accumulate-test
% make ubmark-accumulate-eval
% ./ubmark-accumulate-evalThen cross-compile it and look at the disassembly like this:
% cd $TOPDIR/app/build
% make ubmark-accumulate-test
% riscv32-objdump ./ubmark-accumulate-test | less -p "<ubmark_accumulate>:"Then run those tests on the ISA simulator.
% cd $TOPDIR/app/build
% sys-sim ubmark-accumulate-testNow try the evaluation program on the ISA simulator.
% cd $TOPDIR/app/build
% sys-sim ubmark-accumulate-eval
