# ECE 4750 Section 8: Memory Random Testing and Queues

Table of Contents

In this discussion section, we will work together to develop a random testing methology for memory systems before spending some time discussing three different kinds of queues. You should log into the ecelinux servers using the remote access option of your choice and then source the setup script.

% source setup-ece4750.sh
% cd $HOME/ece4750/2025F
% git pull
% cd sections/section8
% TOPDIR=$PWD
% mkdir $TOPDIR/build

Directed Testing

In last week’s discussion section, we implemented the write init transaction in a very basic direct-mapped cache. As always, we will be using a test-driven design strategy, so it is important for us to begin thinking about how we will test our cache implementions right from the beginning. Last week we saw a very basic directed test for the write init transaction in lab3_mem/test/simple_test.py:

msgs = [
  #    type  opq  addr    len data                type  opq  test len data
  req( 'in', 0x0, 0x1000, 0, 0xdeadbeef ), resp( 'in',  0x0, 0,   0,  0          ),
]

Our directed tests will specify the memory request messages along with the expected memory response messages. Let’s run this directed test on the FL model:

% cd $TOPDIR/build
% pytest ../lab3_mem/test/simple_test.py -s

Verify that you can see the stream source sending memory requests to cache which then forwards those requests to main memory. Also verify that you can see the corresponding response coming back from main memory to the cache which then forwards this response back to the stream sink.

Write a new directed test that first uses the write init transaction to initialize a word, and then uses a read transaction to read that same word. Verify that this directed test case passes on the cache FL model.

Random Testing for Reads

As we know, directed testing is important for verifying known corner cases, but random testing can help discover unknown corner cases. We have provided you a basic random testing strategy for testing memory read requests.

def data_1KB():
  data = []
  for i in range(256):
    data.extend([0x00001000+i*4,0xabcd1000+i*4])
  return data

def random_msgs():

  # Create list of 100 random request messages with the corresponding
  # correct response message.

  msgs = []
  for i in range(100):

    # Choose a random index to read

    idx = randint(0,256)

    # Create address and data. Notice how we turn the random index into
    # an actual address. We multiply the index by four and then add it to
    # the base address which is 0x00001000. We can figure out the correct
    # data from the address.

    addr = 0x00001000+idx*4
    data = 0xabcd1000+idx*4

    # Create a request/response pair.

    msgs.extend([
      req( 'rd', i, addr, 0, 0 ), resp( 'rd', i, 0, 0, data ),
    ])

  return msgs

Notice how we need to define two functions. The first function will be used to initialize the main memory, while the second function is used to generate the memory requests and expected memory responses. We can specify these functions along with memory stall probability, memory latency, and src/sink delays in a test case table similar in spirit to what we have used in previous labs.

test_case_table = mk_test_case_table([
  (                 "msg_func     mem_data_func stall lat src sink"),
  [ "random",        random_msgs, data_1KB,     0.0,  0,  0,  0    ],
  [ "random_delays", random_msgs, data_1KB,     0.9,  3,  10, 10   ],
])

@pytest.mark.parametrize( **test_case_table )
def test( test_params, cmdline_opts ):
  run_test( CacheFL(), test_params, cmdline_opts, cmp_wo_test_field )

You can find the definition of run_test in harness.py. The cmp_wo_test_field is a function that is used to compare the actual response message to the expected response message. It enables us to ignore the test field when running on the FL model since the FL model always indicates that memory transactions miss in the cache.

Let’s run this directed test on the FL model:

% cd $TOPDIR/build
% pytest ../lab3_mem/test/simple_random_test.py -s

Verify using the line trace that the test case is producing reads to random addresses.

Random Testing for Reads and Writes

Now let’s explore how to extend our random testing strategy to include a mixture of both reads and writes. Modify the random_msgs function so that there is a 50% chance that every message is a read and a 50% chance every message is a write. Rerun this random test. We will discuss in the discussion section how to ensure that such a random test works as expected.

Queues

There are three kinds of queues:

Here are the high-level diagrams for each kind of queue.

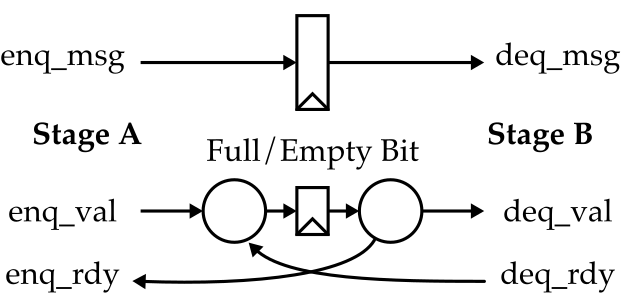

Normal Queue (Single Element)

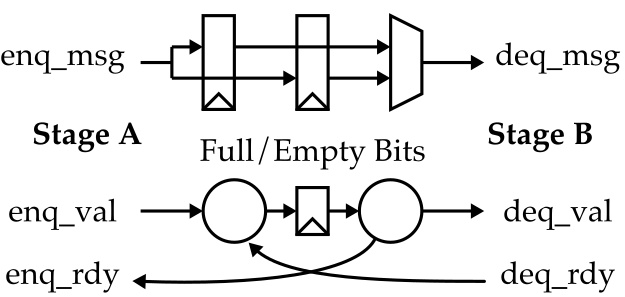

Normal Queue (Two Element)

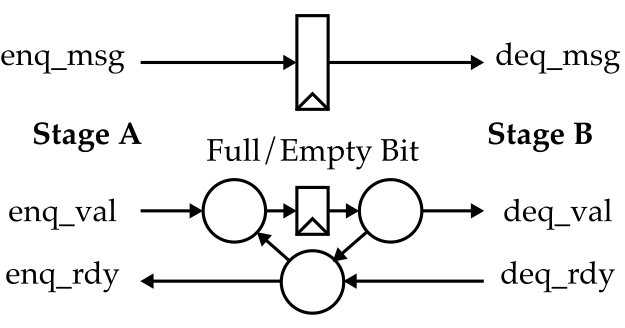

Pipe Queue (Single Element)

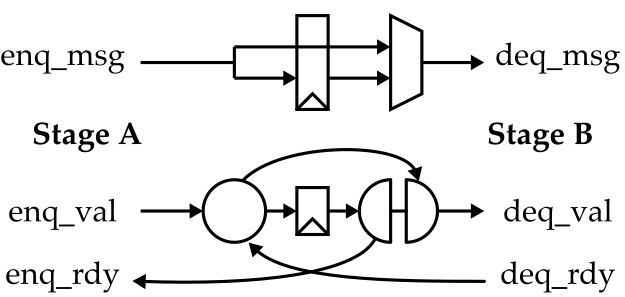

Bypass Queue (Single Element)

We will discuss these queues in the discussion section and also experiment with RTL implementations of these queues:

% cd $TOPDIR/build
% pytest ../sec08_queues/test/NormalQueue1_test.py -s
% pytest ../sec08_queues/test/NormalQueue2_test.py -s
% pytest ../sec08_queues/test/PipeQueue1_test.py -s
% pytest ../sec08_queues/test/BypassQueue1_test.py -s
