# ECE 4750 Section 3: Lab 2 Head Start

Table of Contents

TinyRV2 Processor Walk-Through
Testing the ADD Instruction
Implementing and Testing the ADDI Instruction
Evaluating an Accumulate Function

This discussion section serves to introduce students to the basic processor modeling approach and testing strategy we will be using to implement a pipelined TinyRV2 processor in lab 2. You should log into the ecelinux servers using the remote access option of your choice and then source the setup script.

% source setup-ece4750.sh
% cd $HOME/ece4750/2025F
% git pull
% cd sections/section3
% TOPDIR=$PWD
% mkdir $TOPDIR/build

TinyRV2 Processor Walk-Through

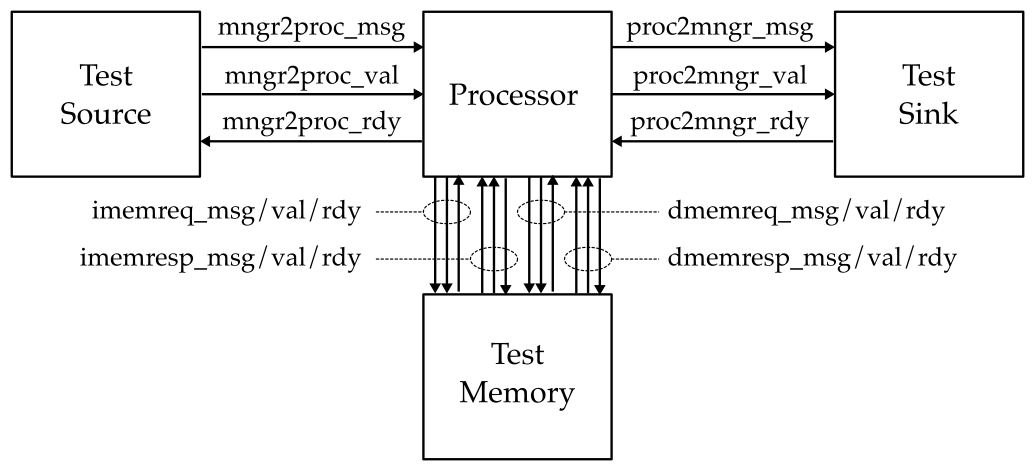

The following figure shows the high-level interface for our TinyRV2 processor. The procesor has an independent instruction memory and data memory interface along with a mngr2proc and proc2mngr stream interface for testing purposes. All interfaces are implemented using the latency-insensitive val/rdy micro-protocol.

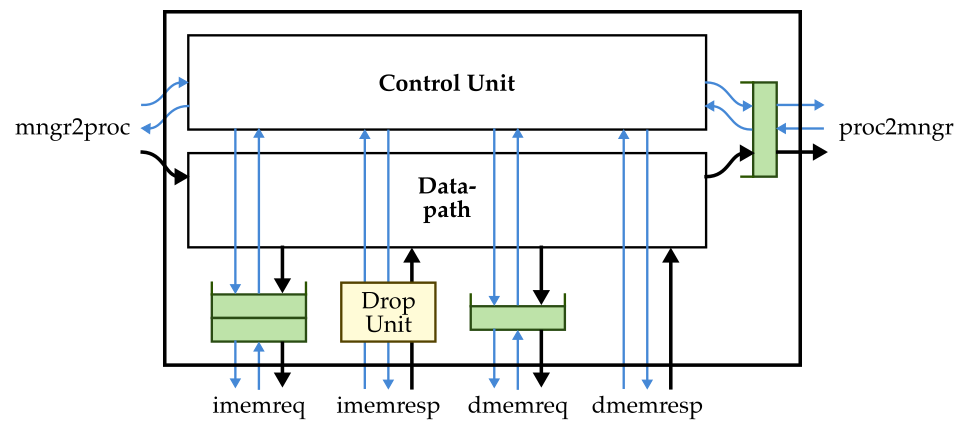

We provide students a complete functional-level model of a processor that implements the above interface and can be used as a reference. You can find the FL model in lab2_proc/ProcFL.py. This is what the interface looks like in Verilog for an RTL implementation of the TinyRV2 process.

module lab2_proc_ProcSimple
#(
  parameter p_num_cores = 1
)
(
  input  logic         clk,
  input  logic         reset,

  // From mngr streaming port

  input  logic [31:0]  mngr2proc_msg,
  input  logic         mngr2proc_val,
  output logic         mngr2proc_rdy,

  // To mngr streaming port

  output logic [31:0]  proc2mngr_msg,
  output logic         proc2mngr_val,
  input  logic         proc2mngr_rdy,

  // Instruction Memory Request Port

  output mem_req_4B_t  imem_reqstream_msg,
  output logic         imem_reqstream_val,
  input  logic         imem_reqstream_rdy,

  // Instruction Memory Response Port

  input  mem_resp_4B_t imem_respstream_msg,
  input  logic         imem_respstream_val,
  output logic         imem_respstream_rdy,

  // Data Memory Request Port

  output mem_req_4B_t  dmem_reqstream_msg,
  output logic         dmem_reqstream_val,
  input  logic         dmem_reqstream_rdy,

  // Data Memory Response Port

  input  mem_resp_4B_t dmem_respstream_msg,
  input  logic         dmem_respstream_val,
  output logic         dmem_respstream_rdy,

  // extra ports

  input  logic [31:0]  core_id,
  output logic         commit_inst,
  output logic         stats_en

);

Notice there are some extra ports to set the core id and for statistics, and that we are using SystemVerilog structs to encode the memory requests and responses. Here is the memory request struct format:

 76  74 73           66 65              34 33  32 31               0
+------+---------------+------------------+------+------------------+
| type | opaque        | addr             | len  | data             |
+------+---------------+------------------+------+------------------+

And here is the memory response struct format:

 46  44 43           36 35  34 33  32 31               0
+------+---------------+------+------+------------------+
| type | opaque        | test | len  | data             |
+------+---------------+------+------+------------------+

The full TinyRV2 instruction set includes the following instructions:

CSR: csrr, csrw
Reg-Reg: add, sub, mul, and, or, xor, slt, sltu, sra, srl, sll
Reg-Imm: addi, ori, andi, xori, slti, sltiu, srai, srli, slli, lui, auipc
Memory: lw, sw
Jump: jal, jalr
Branch: bne, beq, blt, bltu, bge, bgeu

In this discussion section, we provide you a simple processor implementation that implements ADD, LW, BNE, CSRR, and CSRW. The block diagram for how the control unit and datapath unit are composed is shown below.

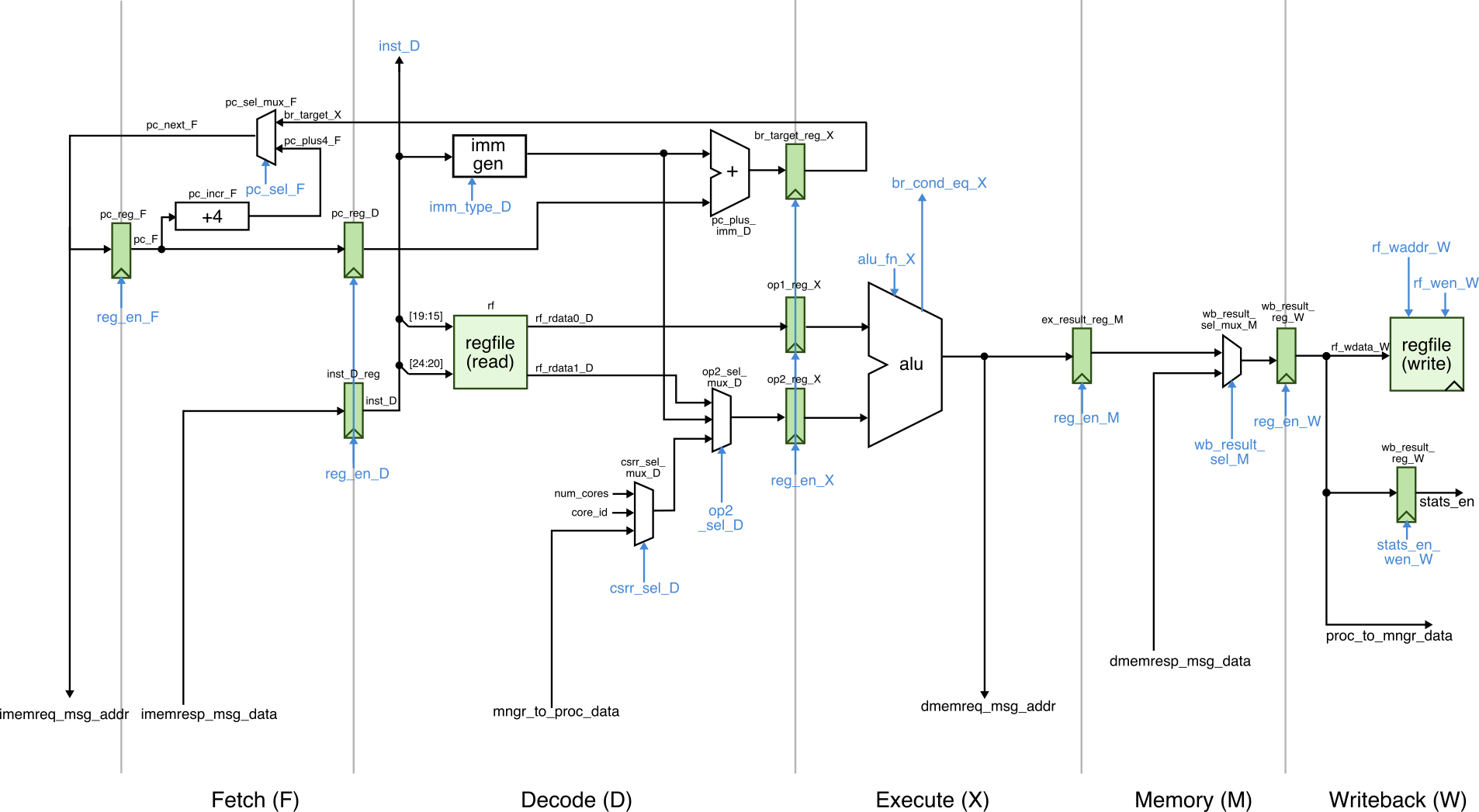

The datapath for this simple processor is shown below.

Take a look at the code in the following files to learn more about how the simple processor is implemented.

lab2_proc/ProcSimpleDpath.v
lab2_proc/ProcSimpleCtrl.v
lab2_proc/ProcSimple.v

Testing the ADD Instruction

Let’s take a look at a basic test for the ADD instruction. They primary way we will test our processors is by writing very small assembly test programs. Take a look at the test in lab2_proc/test/simple_add_test.py to see how to write such assembly test programs.

def test_add_sm( cmdline_opts ):

  prog="""
    csrr x1, mngr2proc < 5
    csrr x2, mngr2proc < 4
    nop
    nop
    nop
    nop
    nop
    nop
    nop
    nop
    add x3, x1, x2
    nop
    nop
    nop
    nop
    nop
    nop
    nop
    nop
    csrw proc2mngr, x3 > 9
    nop
    nop
    nop
    nop
    nop
    nop
    nop
    nop
  """

  run_test( ProcSimple, prog, cmdline_opts=cmdline_opts )

Our assembly test program is just a multiline string with one assembly instruction per line, which we can then pass in to the run_test helper function. There are two special control status registers (CSR) that we will use extensively in testing. If we read the mngr2proc CSR using a CSRR instruction, then this deques a message from the mngr2proc stream interface (the message comes from the stream source) and writes it to the given general purpose register. If we write the mngr2proc CSR using a CSRW instruction, then this enqueues a message onto the proc2mngr stream interface (the message goes to the stream sink). We can use the < symbol to specify in the assembly code what value we want the stream source to send to the processor for that instruction, and we can use the > symbol to specify in the assembly code what value we want the stream sink to check for that instruction.

You should always make sure your tests pass on the FL model before using them to test your RTL model. Let’s run the above test on our FL model.

% cd $TOPDIR/build
% pytest ../lab2_proc/test/simple_add_test.py -s

Use the -s command line option so you can see the linetrace. Verify that the instructions you think should be executing are indeed executing on the FL model. Now let’s try the same test on the simple processor. Modify run_test to use the ProcSimple like this:

run_test( ProcSimple, prog, cmdline_opts=cmdline_opts )

Then rerun the test and look at the line trace. It should look something like this:

 1r .        >          |                       |    |    |    |[ ]                         >                  [  ]| >
 2r .        >          |                       |    |    |    |[ ]                         >                  [  ]| >
 3: .        >          |                       |    |    |    |[ ]rd:00:00000200:0:        >                  [  ]| >
 4: #        >  00000200|                       |    |    |    |[ ]rd:00:00000204:0:        >rd:00:0:0:fc0020f3[ *]| >
 5: 00000005 >  00000204|csrr   x01, mngr2proc  |    |    |    |[ ]rd:00:00000208:0:        >rd:00:0:0:fc002173[ *]| >
 6: 00000004 >  00000208|csrr   x02, mngr2proc  |csrr|    |    |[ ]rd:00:0000020c:0:        >rd:00:0:0:00000013[ *]| >
 7: .        >  0000020c|nop                    |csrr|csrr|    |[ ]rd:00:00000210:0:        >rd:00:0:0:00000013[ *]| >
 8: .        >  00000210|nop                    |nop |csrr|csrr|[ ]rd:00:00000214:0:        >rd:00:0:0:00000013[ *]| >
 9: .        >  00000214|nop                    |nop |nop |csrr|[ ]rd:00:00000218:0:        >rd:00:0:0:00000013[ *]| >
10: .        >  00000218|nop                    |nop |nop |nop |[ ]rd:00:0000021c:0:        >rd:00:0:0:00000013[ *]| >
11: .        >  0000021c|nop                    |nop |nop |nop |[ ]rd:00:00000220:0:        >rd:00:0:0:00000013[ *]| >
12: .        >  00000220|nop                    |nop |nop |nop |[ ]rd:00:00000224:0:        >rd:00:0:0:00000013[ *]| >
13: .        >  00000224|nop                    |nop |nop |nop |[ ]rd:00:00000228:0:        >rd:00:0:0:00000013[ *]| >
14: .        >  00000228|nop                    |nop |nop |nop |[ ]rd:00:0000022c:0:        >rd:00:0:0:002081b3[ *]| >
15: .        >  0000022c|add    x03, x01, x02   |nop |nop |nop |[ ]rd:00:00000230:0:        >rd:00:0:0:00000013[ *]| >
16: .        >  00000230|nop                    |add |nop |nop |[ ]rd:00:00000234:0:        >rd:00:0:0:00000013[ *]| >
17: .        >  00000234|nop                    |nop |add |nop |[ ]rd:00:00000238:0:        >rd:00:0:0:00000013[ *]| >
18: .        >  00000238|nop                    |nop |nop |add |[ ]rd:00:0000023c:0:        >rd:00:0:0:00000013[ *]| >
19: .        >  0000023c|nop                    |nop |nop |nop |[ ]rd:00:00000240:0:        >rd:00:0:0:00000013[ *]| >
20: .        >  00000240|nop                    |nop |nop |nop |[ ]rd:00:00000244:0:        >rd:00:0:0:00000013[ *]| >
21: .        >  00000244|nop                    |nop |nop |nop |[ ]rd:00:00000248:0:        >rd:00:0:0:00000013[ *]| >
22: .        >  00000248|nop                    |nop |nop |nop |[ ]rd:00:0000024c:0:        >rd:00:0:0:00000013[ *]| >
23: .        >  0000024c|nop                    |nop |nop |nop |[ ]rd:00:00000250:0:        >rd:00:0:0:7c019073[ *]| >
24: .        >  00000250|csrw   proc2mngr, x03  |nop |nop |nop |[ ]rd:00:00000254:0:        >rd:00:0:0:00000013[ *]| >
25: .        >  00000254|nop                    |csrw|nop |nop |[ ]rd:00:00000258:0:        >rd:00:0:0:00000013[ *]| >
26: .        >  00000258|nop                    |nop |csrw|nop |[ ]rd:00:0000025c:0:        >rd:00:0:0:00000013[ *]| >
27: .        >  0000025c|nop                    |nop |nop |csrw|[ ]rd:00:00000260:0:        >rd:00:0:0:00000013[ *]| > 00000009
28: .        >  00000260|nop                    |nop |nop |nop |[ ]rd:00:00000264:0:        >rd:00:0:0:00000013[ *]| >
29: .        >  00000264|nop                    |nop |nop |nop |[ ]rd:00:00000268:0:        >rd:00:0:0:00000013[ *]| >
30: .        >  00000268|nop                    |nop |nop |nop |[ ]rd:00:0000026c:0:        >rd:00:0:0:00000013[ *]| >
31: .        >  0000026c|nop                    |nop |nop |nop |[ ]rd:00:00000270:0:        >rd:00:0:0:00000013[ *]| >
32: .        >  00000270|nop                    |nop |nop |nop |[ ]rd:00:00000274:0:        >rd:00:0:0:fc0020f3[ *]| >

Now add a new test function to lab2_proc/test/simple_add_test.py named test_add_lg which is similar to test_add_sm but uses two larger input values. Verify your test passes on both ProcFL and ProcSimple.

Implementing and Testing the ADDI Instruction

Now let’s add the ADDI instruction to our simple processor. It is critical to always take an incremental approach. Add a single instruction to your processor. Do lots of testing and only once you are confident you have covered all of the corner cases should you move on to adding another instruction.

Use the given handout to plan your implementation. Make sure you understand how the control signals are set for the ADD instruction. Draw any modifications you need to the datapath, add any control signals you need to the control signal table, and then fill out the row in the control signal table for the ADDI instruction. Here are the explanations of each control signal:

val : whether or not the instruction is valid; should be y for all instructions; basically a way to determine if this is a valid instruction or not for debugging purposes
br type : is either br_na if this is not a branch or br_bne if this is a BNE operation
imm type : immediate format corresponding to the TinyRV2 instruction set manual. imm_i is for I-type immediate format and imm_b is for B-type immediate format
rs1 en : set to n if this instruction does not use the rs1 field and set to y if this instruction does use the rs1 field; used for dependency checking
op2 muxsel : mux select control signal for the op2 mux; use bm_rf to choose the value from the register file, use bm_imm to choose the value from the immediate generation unit, use csr to choose the value from the CSR mux
rs2 en : set to n if this instruction does not use the rs2 field and set to y if this instruction does use the rs2 field; used for dependency checking
alu fn : ALU function control signal; use alu_add for the ALU to do an add; use alu_cp0 for the ALU to copy op0 to the output; use alu_cp1 for the ALU to copy op1 to the output
dmm type : the type of data memory operation; use nr if this is not a memory request; use ld if this is a load
wbmux sel : mux select control signal for writeback mux; use wm_a to choose the value from the ALU; use wm_m to choose the value from the data memory
rf wen : register file write enable; set to n if this instruction does not need to write the register file; set to y if this instruction does need to write the register file
csrr/csrw : whether this is a CSRR or CSRW instruction

Once you have the control signal table filled out on paper, go ahead and add a new row to the control signal table in lab2_proc/ProcSimpleCtrl.v:

always_comb begin
  casez ( inst_D )
    //                            br      imm   rs1 op2    rs2 alu      dmm wbmux rf
    //                       val  type    type   en muxsel  en fn       typ sel   wen csrr csrw
    `TINYRV2_INST_NOP     :cs( y, br_na,  imm_x, n, bm_x,   n, alu_x,   nr, wm_a, n,  n,   n    );
    `TINYRV2_INST_ADD     :cs( y, br_na,  imm_x, y, bm_rf,  y, alu_add, nr, wm_a, y,  n,   n    );
    `TINYRV2_INST_LW      :cs( y, br_na,  imm_i, y, bm_imm, n, alu_add, ld, wm_m, y,  n,   n    );
    `TINYRV2_INST_BNE     :cs( y, br_bne, imm_b, y, bm_rf,  y, alu_x,   nr, wm_a, n,  n,   n    );
    `TINYRV2_INST_CSRR    :cs( y, br_na,  imm_i, n, bm_csr, n, alu_cp1, nr, wm_a, y,  y,   n    );
    `TINYRV2_INST_CSRW    :cs( y, br_na,  imm_i, y, bm_rf,  n, alu_cp0, nr, wm_a, n,  n,   y    );
  endcase
end

Create a new test case in lab2_proc/test/simple_addi_test.py similar in spirit to the test cases we used to test the ADD instruction. Then run your test case on both ProcFL and ProcSimple. Look at the line trace to confirm your test case is doing what you expect on ProcSimple.

% cd $TOPDIR/build
% pytest ../lab2_proc/test/simple_addi_test.py -v

Writing assembly test cases can be very tedious. We can use the Python to help automate the process of generating test cases. You can see an example of functions that generate assembly test programs in inst_add.py and then you can see using these test programs in ProcSimple_test.py. Go ahead and run all of the provided tests on ProcFL and ProcSimple like this:

% cd $TOPDIR/build
% pytest ../lab2_proc/test -v

Evaluating an Accumulate Function

Now let’s try to run the assembly for a simple C function on the simple processor and start to look at its performance. Write out the TinyRV2 assembly code that implements this C function:

int accumulate( int* a, int n )
{
  int sum = 0;
  for ( int i = 0; i < n; i++ ) {
    int b = a[i];
    sum   = sum + b;
  }
  return sum;
}

You should only use the instructions we have implemented in the simple processor (ADD, ADDI, LW, BNE). Once you have the assembly, add it to the lab2_proc/test/simple_accumulate_test.py test script. Then try running the program on both ProcFL and ProcSimple like this:

% cd $TOPDIR/build
% pytest ../lab2_proc/test/simple_accumulate_test.py -v

Take a look at the line trace to estimate the number of cycles per iteration.
